zPRIME 3.0
Ultra-performance 4D software-defined imaging radar for physical AI, robotics and intelligent infrastructure
Overview

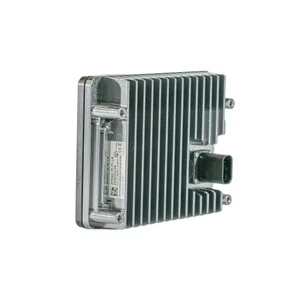

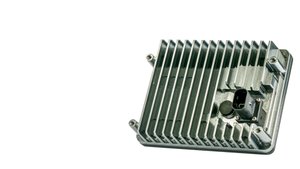

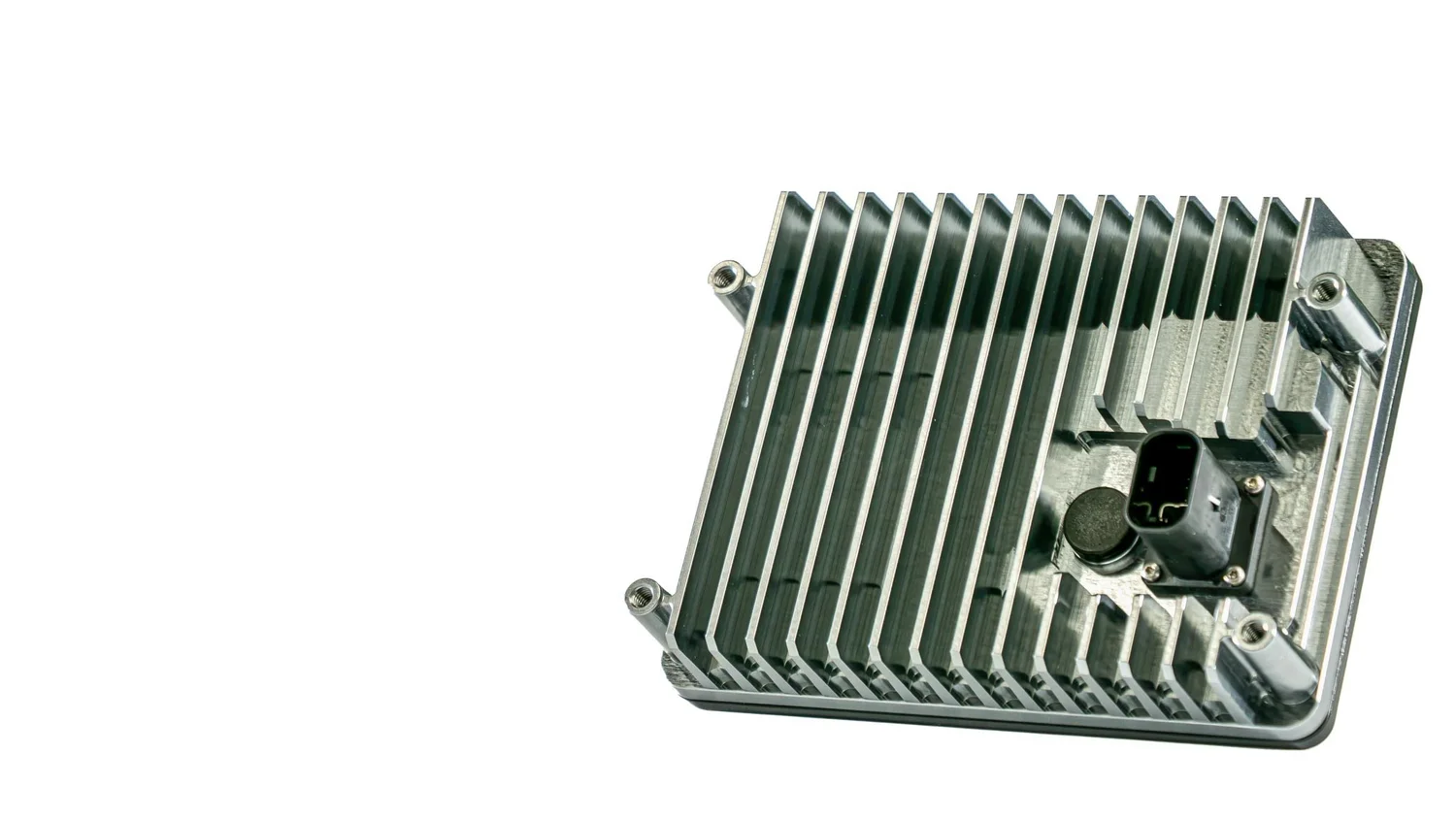

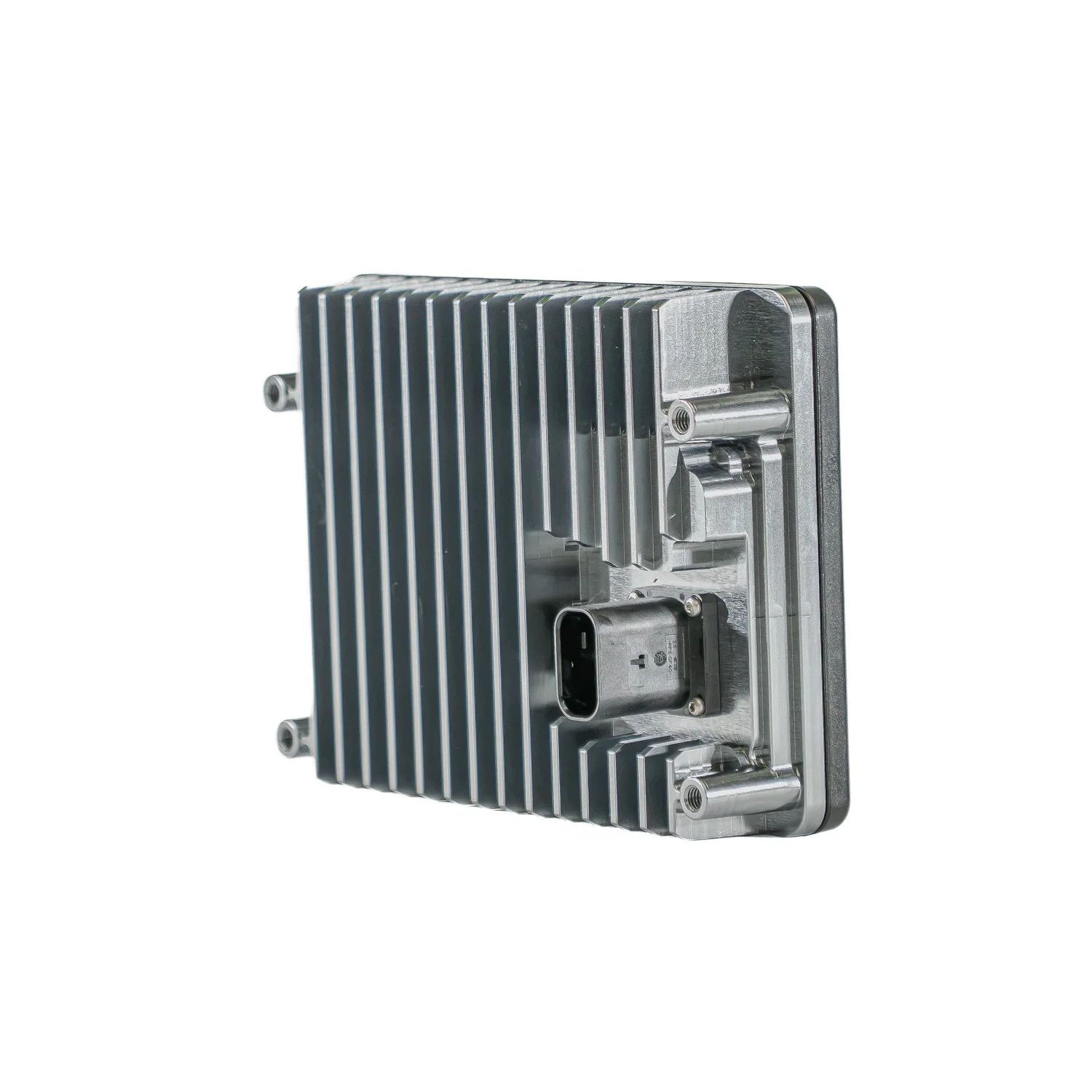

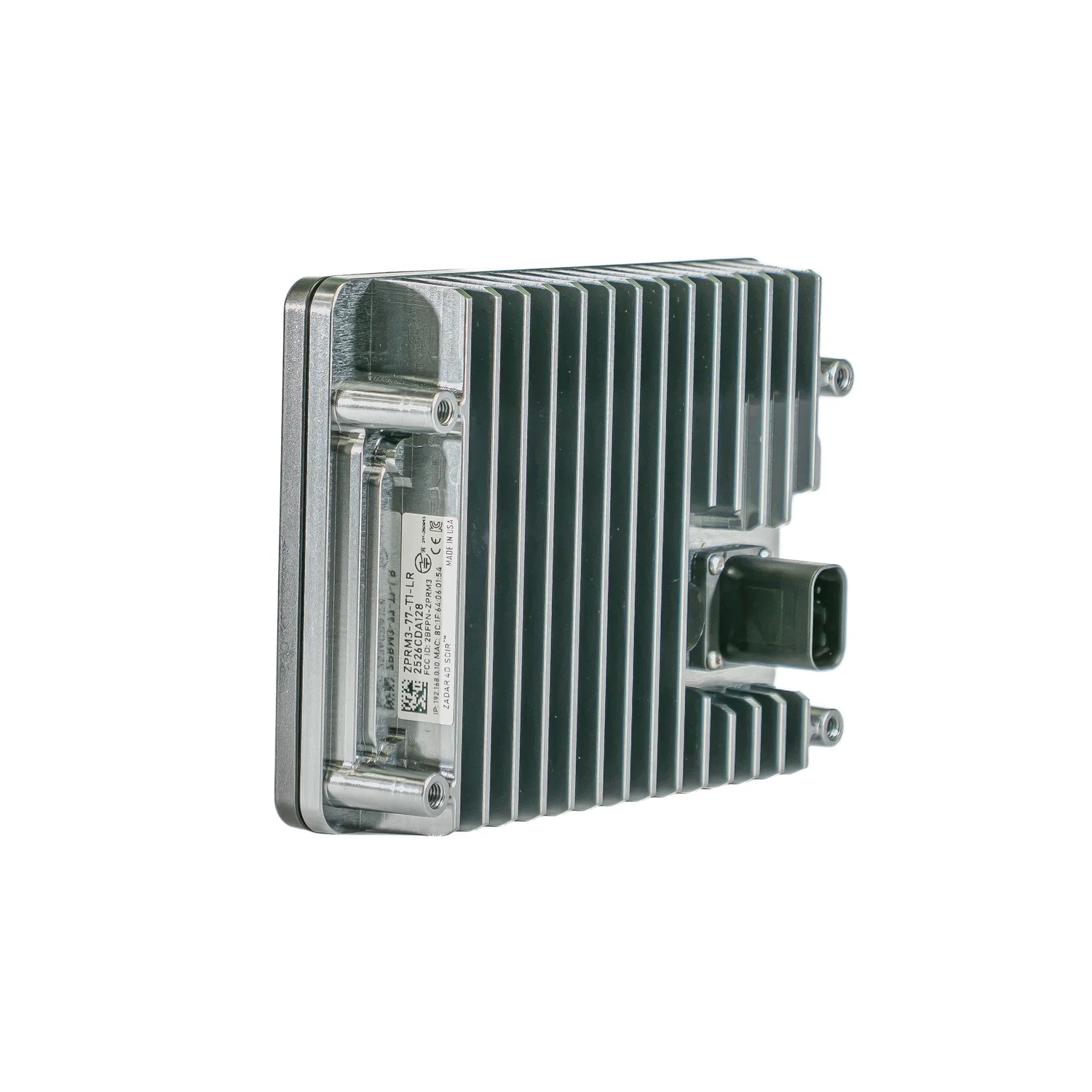

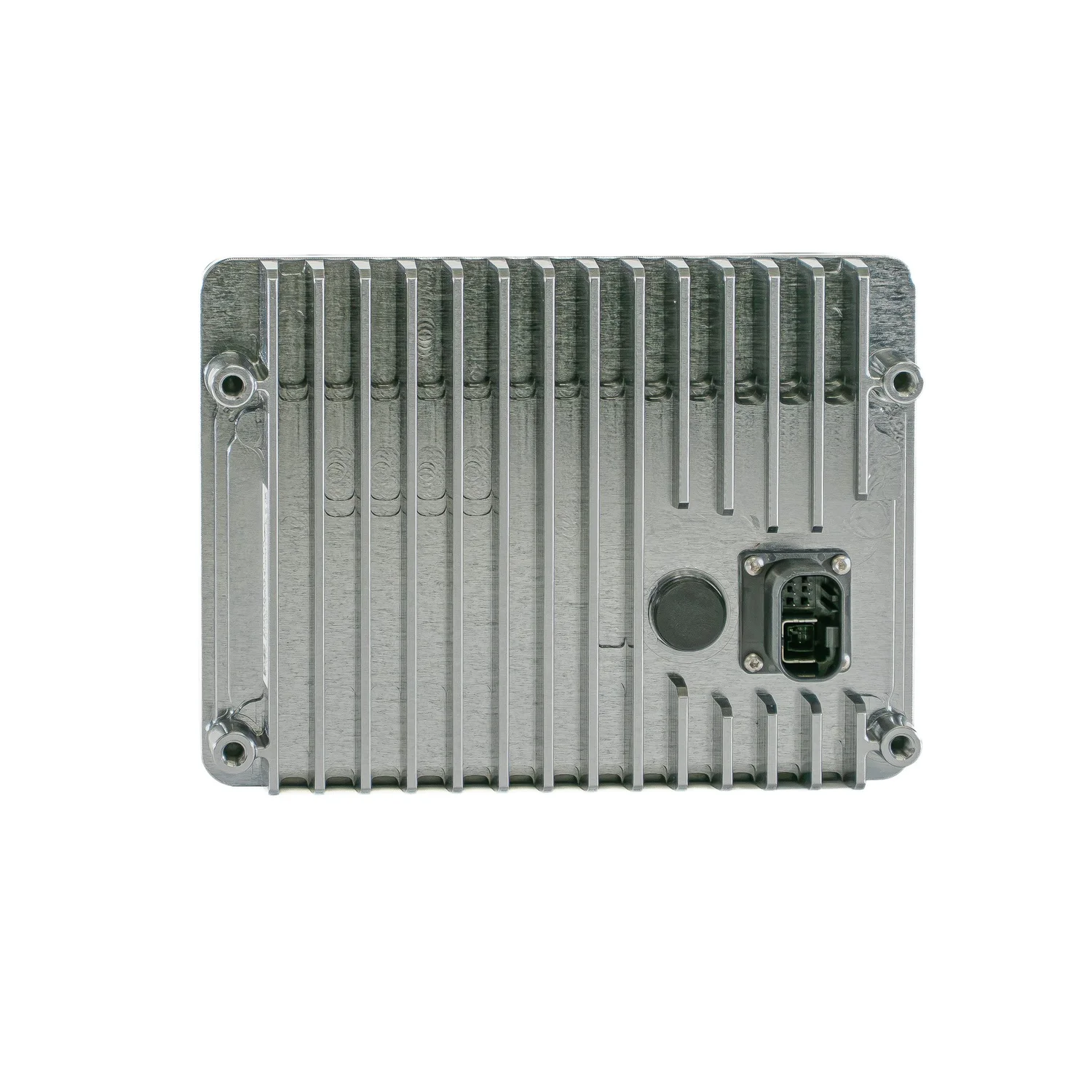

zPRIME 3.0 is Zadar's flagship 76–81 GHz cascaded imaging radar, built on a third-generation digital beamforming architecture and the SDIR (Software-Defined Imaging Radar) platform. It combines 0.35° static angular resolution, kilometer-class detection range and dense 4D point clouds in a production-ready, IP68-sealed sensor.
Output behavior is configurable per application. One sensor family covers close-range object separation and long-range detection through rain, dust, fog, darkness and camera-blinding conditions, with three antenna options and 1000BASE-T1, CAN and CAN-FD interfaces.
Features
- 0.35° static angular resolution, ±0.05° angular accuracy
- >1,000 m truck detection with the long-range antenna
- 20 Hz frame rate (up to 50 Hz on request)
- 118 dB dynamic range; null steering against up to 20 nearby active radars, tested to ISO 17387
- IEEE 1588 PTP timestamping and sync frame trigger
- IP68 (2 m), −40 °C to +85 °C operating temperature
- zPRIME 3.0 radar sensor (selected antenna configuration)
- RJ45 and PoE converter
- RSP Core software: 4D point cloud output with web visualizer
- HTTP configuration API and UDP radar data API
- SDKs for C++, Python, ROS 1 and ROS 2
- Ethernet firmware updates
- RSP Core: Streaming, configuration and integration: 4D point cloud, PTP time sync, firmware updates.
- zVUE (Plus): Camera-radar and GPS fusion, radar odometry, clustering, classification, multi-object tracking, online calibration. Delivered through a paid engagement.
- zSDIR (Pro): Custom waveform and RF control, custom processing tuning and full SDIR architecture access. Delivered through a paid engagement.
- C++ · Python · ROS 1 · ROS 2: SDKs, UDP radar data API, HTTP configuration API and web visualizer for streaming and integrating 4D point clouds.
Important note
How ordering works: no online payment
Order & start development
EVALUATION / PRODUCTION UNIT · LONG-RANGE ANTENNA
ZPRM3-77-T1-LR — zPRIME 3.0 long-range 4D imaging radar, 120° × 24° FOV, >1,000 m truck detection
Includes RSP Core software and SDKs. Configuration confirmed with a Zadar engineer before invoicing.
EVALUATION / PRODUCTION UNIT · WIDE FOV ANTENNA
ZPRM3-77-T1-W — zPRIME 3.0 wide-FOV 4D imaging radar, 120° × 50° FOV, >400 m truck detection
Includes RSP Core software and SDKs. Configuration confirmed with a Zadar engineer before invoicing.
EVALUATION / PRODUCTION UNIT · ULTRA-WIDE FOV ANTENNA
ZPRM3-77-T1-UW — zPRIME 3.0 ultra-wide 4D imaging radar, 120° × 90° FOV, >250 m truck detection
Includes RSP Core software and SDKs. Configuration confirmed with a Zadar engineer before invoicing.
Software & development tools
SOFTWARE · INCLUDED WITH EVERY UNIT
RSP Core
Streaming, configuration and integration: 4D point cloud, PTP time sync, firmware updates.
SOFTWARE · PERCEPTION STACK
zVUE (Plus)
Camera-radar and GPS fusion, radar odometry, clustering, classification, multi-object tracking, online calibration. Delivered through a paid engagement.
SOFTWARE · FULL SDIR ACCESS
zSDIR (Pro)
Custom waveform and RF control, custom processing tuning and full SDIR architecture access. Delivered through a paid engagement.
SOFTWARE DEVELOPMENT KITS
C++ · Python · ROS 1 · ROS 2
SDKs, UDP radar data API, HTTP configuration API and web visualizer for streaming and integrating 4D point clouds.
Orders are reviewed by Zadar Labs and are subject to availability, Zadar Labs terms of sale and applicable export regulations.
Specifications
| Parameter | ZPRM3-77-T1-LR | ZPRM3-77-T1-W | ZPRM3-77-T1-UW |
|---|---|---|---|
| Radar performance | |||
| Frequency | 76–81 GHz (US) · 77–81 GHz (worldwide) · 76–77 GHz (regional) | ||
| Field of view (H × V)¹ | 120° × 24° | 120° × 50° | 120° × 90° |
| Static angular resolution (H × V)² | 0.35° × 0.4° | 0.35° × 0.9° | 0.35° × 1.6° |
| Angular accuracy | ±0.05° | ||
| Truck detection³ | >1,000 m | >400 m | >250 m |
| Car detection⁴ | >800 m | >400 m | >250 m |
| Human detection⁵ | >180 m | >120 m | >80 m |
| Instrumented range | 0.05–1,000 m | 0.05–400 m | 0.05–250 m |
| Range resolution / accuracy | 0.034 m / 0.01 m | ||
| Doppler ambiguity / resolution | 143.4 m/s (516 km/h) / 0.14 m/s | ||
| Frame time | 50 ms (20 Hz), up to 50 Hz | ||
| Dynamic range | 118 dB | ||
| Interferer tolerance | Tested to ISO 17387, null steering up to 20 active radars | ||
| Radio principle | Cascaded SDIR, RF-FMCW, third-generation HiRes beamformer | ||
| Hardware | |||
| Certification | FCC Part 95M, CE, MIC (Japan), KC (South Korea) | ||
| Dimensions / weight | 140 × 104 × 35 mm / 520 g | ||
| Material / mounting | PBT and ADC12 aluminum, dark grey anodized / rear, 4 × M5 | ||
| Sealing | IP68, 2 m | ||
| Operating / storage temperature | −40 to +85 °C / −40 to +95 °C | ||
| Shock and vibration | EN 60068 / ISO 16750 | ||
| Interface / connector | 1000BASE-T1, CAN, CAN-FD / TE Connectivity 2387351-1 | ||
| Power supply / consumption | +8 to 26 V DC (12 V nominal) / 18 W avg, 28 W peak | ||
| Synchronization | IEEE 1588 PTP timestamping and sync frame trigger | ||
¹ 6 dB beamwidth; horizontal FOV expandable to 160°. ² Real-world separability, SNR ≥ 5 dB, same range-Doppler cell. ³ 23 dBsm pickup-truck RCS. ⁴ 13 dBsm sedan RCS. ⁵ −5 dBsm human RCS. Detection ranges: obstruction-free real-world scenario, >90% detectability.
Technical documentation
★ = Top documentation selected by Zadar
| Type | Title | Format | |
|---|---|---|---|
| ★ | Data sheet | zPRIME 3.0 4D Imaging Radar Data Sheet | |
| User guide | zPRIME integration guide | ||
| Software | RSP Core software and SDK downloads | ZIP | |
| Technical article | How SDIR works: Software-Defined Imaging Radar | HTML |
Support & training
Talk to a Zadar radar engineer
Get help choosing an antenna configuration, integrating with your stack, or scoping a pilot.
Frequently asked questions
Answers on SDIR, interfaces, synchronization, certification and deployment.
Downloads
Data sheets, integration guides, software and SDK packages.
Videos & Clear Signal podcast
Product walkthroughs, field demos and conversations with Zadar engineers.
