State-of-the-Art Software-Defined Radars
Our flexible software-defined sensors target three essential sensing classes: near-field, all-purpose, and ultra-performance. Each sensor integrates our SDIR™ technology and offers best-in-class performance and flexibility. zVUE manages any number of our sensors for a comprehensive sensing solution that covers every conceivable use case.

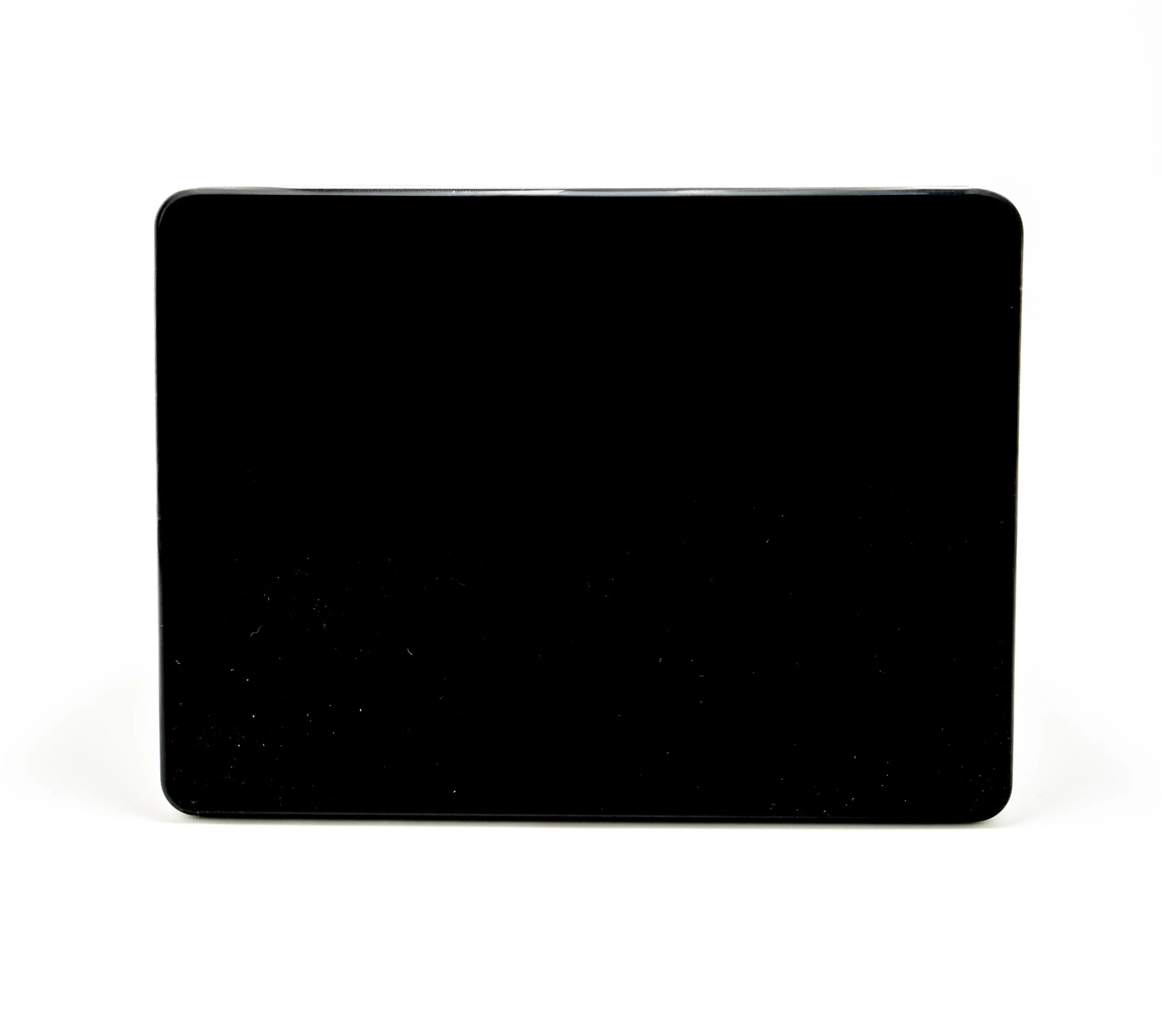

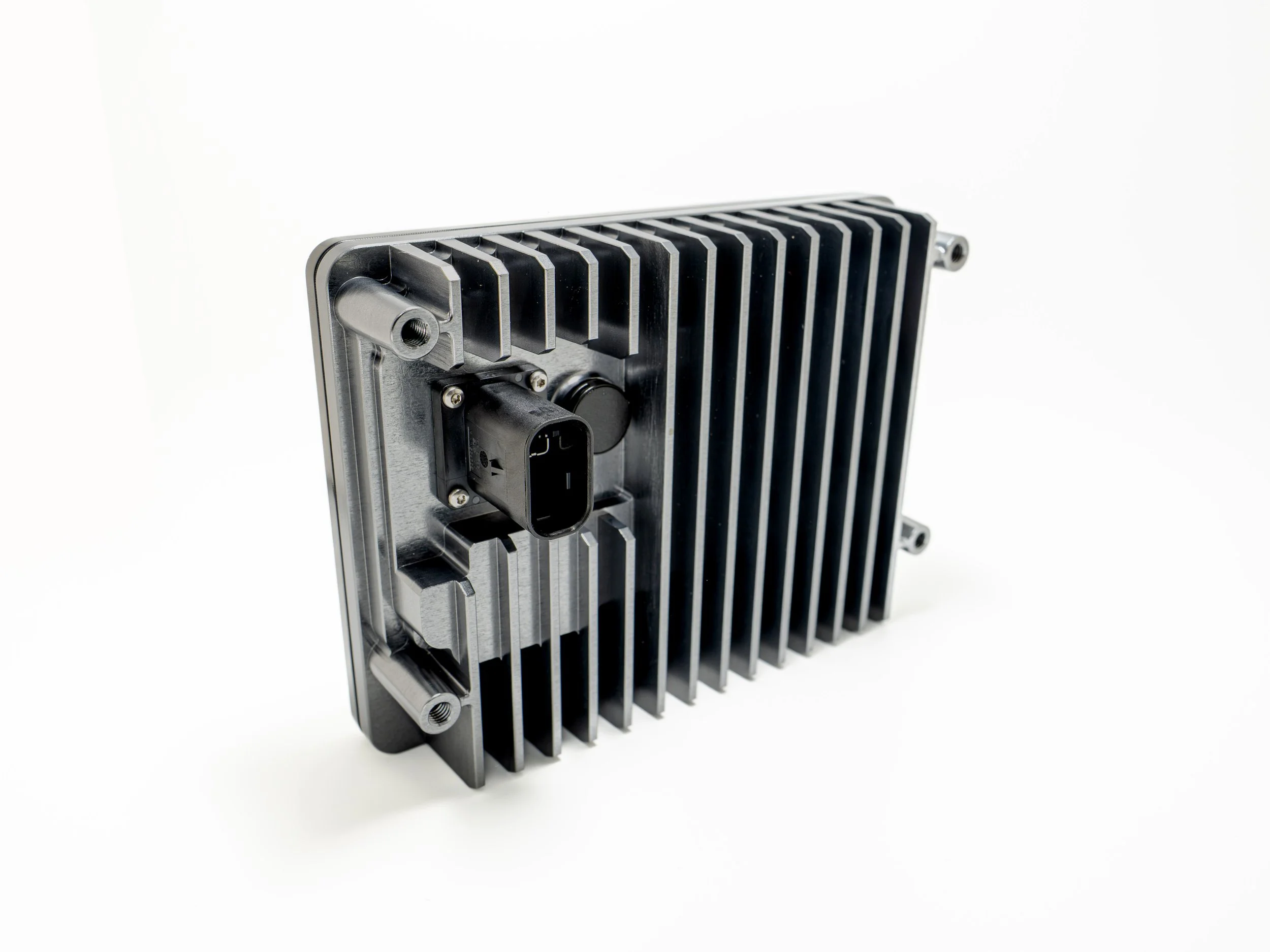

zPRIME 2.0
Ultra-Performance 4D Imaging Radar
See farther with precision.
zPRIME 2.0 pairs long-range detection with ultra-fine angular resolution to deliver dense 4D point clouds for AV, smart infrastructure, and security, powered by SDIR™ and zVUE.
zPRIME enables next-generation radar sensing systems by providing a breakthrough combination of resolution, range, point density, size, and software flexibility.
Field of View
120° x 24° 120° x 50° 120° x 90°
Static Angular Resolution
0.35° x 0.4° 0.35° x 0.9° 0.35° x 1.6°
Angular Accuracy
±0.05°
Truck Detection
> 1,000m > 400m > 250m
Car Detection
> 800m > 400m > 250m
Human Detection
> 250m > 150m > 90m
Hardware Dimensions
140 x 103 x 36 mm
500g (17.6 oz)
Weight
Sealing Protection
IP68 2-meter
1000m Vehicle Detection with zPRIME 2.0
Operating Temperature
-40° - 85° C
Storage Temperature
-40° - 95° C
Lifetime
IEC 60068-2-27,64, ISO 16750
Frame Time
50ms / 20Hz
How To Setup zPRIME
Frequently Asked Questions
-
Of course! Our component pages have videos of our detection performance and features. Contact us and we'd be happy to show you more.
-
Our sensors are designed to work with zVUE as part of our unified Full-stack SDIR platform. This tight integration involving context-aware feedback from zVUE is what allows our sensors to achieve their performance. Contact us and we can work with you based on your specific integration needs.
-
Our zVUE Radar Operating System works with all 4D radar sensors in Partial SDIR mode. Its connected radar fusion, data conditioning, and radar preperception libraries immediately boost system performance on any platform. The full performance of radar can only be achieved by combining zVUE with Zadar radar sensors in Full-Stack SDIR mode.
-
Our solid-state radar platforms are automotive-grade and are designed for use in harsh, low-maintenance environments.
-
No, commercial 60 and 77GHz radars have been used safely for a long time. Our radar technology is not like military or marine radar. It is a low-power, surface-reflecting sensing technology and manufacturers follow strict transmit power limits. Our excellent detection range comes from highly sensitive detectors and SDIR system optimization, not from high transmit power.
-
Susceptibility to radar-radar interference is one of the core problems that SDIR solves. In our architecture, improving detection performance and increasing interference resistance go hand-in-hand. SDIR integrates several in-house innovations including RFTDMA modulation, action potential-based detection, and AI denoising that make interference a non-issue.
